Heat Transfer Oil Systems

Download Brochure

Mokon's circulating oil temperature control systems meet process heating requirements up to 700°F (371°C). Our durable and high-quality oil systems are available with heating capacities up to 600 kW; flow rates of 5 to 120 GPM; single, dual and triple zone configurations; and portable or stationary designs. Custom engineered systems are also available.

HTF 400 Series

HTF 400 Series
  • Compact and portable
  • Available in heating only, cooling only or heating and cooling
  • Heating capacities up to 24 kW
  • Available in 5 or 10 GPM
  • Temperatures up to 400°F (204°C)

HTF 500 Series

HTF 500 Series
  • Sleek, vertical design
  • Available in 10 or 20 GPM; multiple zones
  • Heating capacities up to 96 kW
  • Temperatures up to 500°F (260°C)

HTF 600 Series

HTF 600 Series
  • High temperature fluid control
  • 2 Hp, 20 GPM and up to 100 PSI
  • Temperatures up to 600°F (315°C)

HTF HF-2 Series

HTF HF-2 Series
  • Large flow and higher heating capacity systems
  • Heating capacities up to 144 kW
  • Temperatures up to 600°F (315°C)

HTF ST Series

HTF ST Series
  • Stationary systems; sturdy steel frame
  • Heating capacities up to 600 kW
  • Temperatures up to 700°F (371°C)

HTF NPS Series

HTF NPS Series
  • Positive and negative pressure system; field adjustable
  • Delays repairs allowing production to continue through end of run
  • Temperatures up to 400°F (204°C)

Full Range

Duratherm NPS
  • Combination heating and cooling system
  • Heating capacities up to 48 kW
  • Pumping capacities up to 30 GPM
  • Temperatures from 50°F to 650°F (10°C to 343°C)

Heat Transfer Fluids

Heat Transfer Fluids
  • Fluids last longer and help keep your system cleaner
  • Extremely stable
  • Aggressive blend of additives engineered to provide a high level of protection

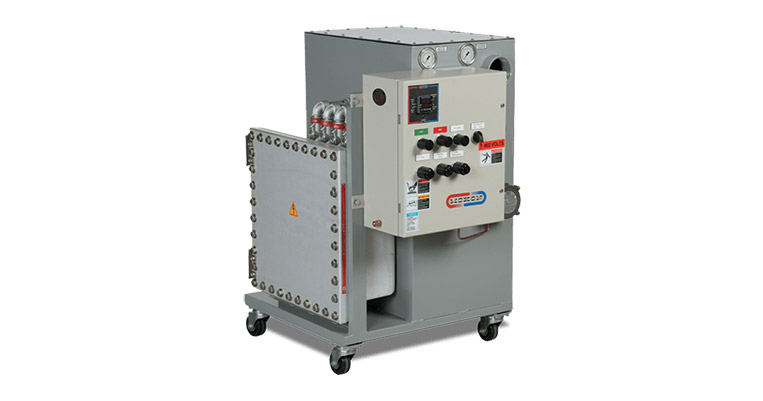

Xtreme-Therm®

XtremeTherm Circulating Water Temperature Control System
  • Designed specifically for chemical and harsh environments
  • Circulating oil temperature control system meets process heating requirements up to 650°F (343°C)
