Full Range Systems

Xchange-Therm® Heating & Chilling System

Xchange-Therm Systems for Industrial Process Applications

Mokon's Xchange-Therm line features high performing equipment designed for critical applications in the converting, food, medical, pharmaceutical, printing, semiconductor and many other industrial applications. Our high-quality products deliver efficient, cost effective and reliable temperature control, and can be operated in line with a hot water or steam boiler, or a supplied chilled fluid source. Mokon can customize any system to fit your specific requirements. Our systems are proudly designed and manufactured in the USA. Mokon is an ISO 9001 and ISO 14001 certified company.

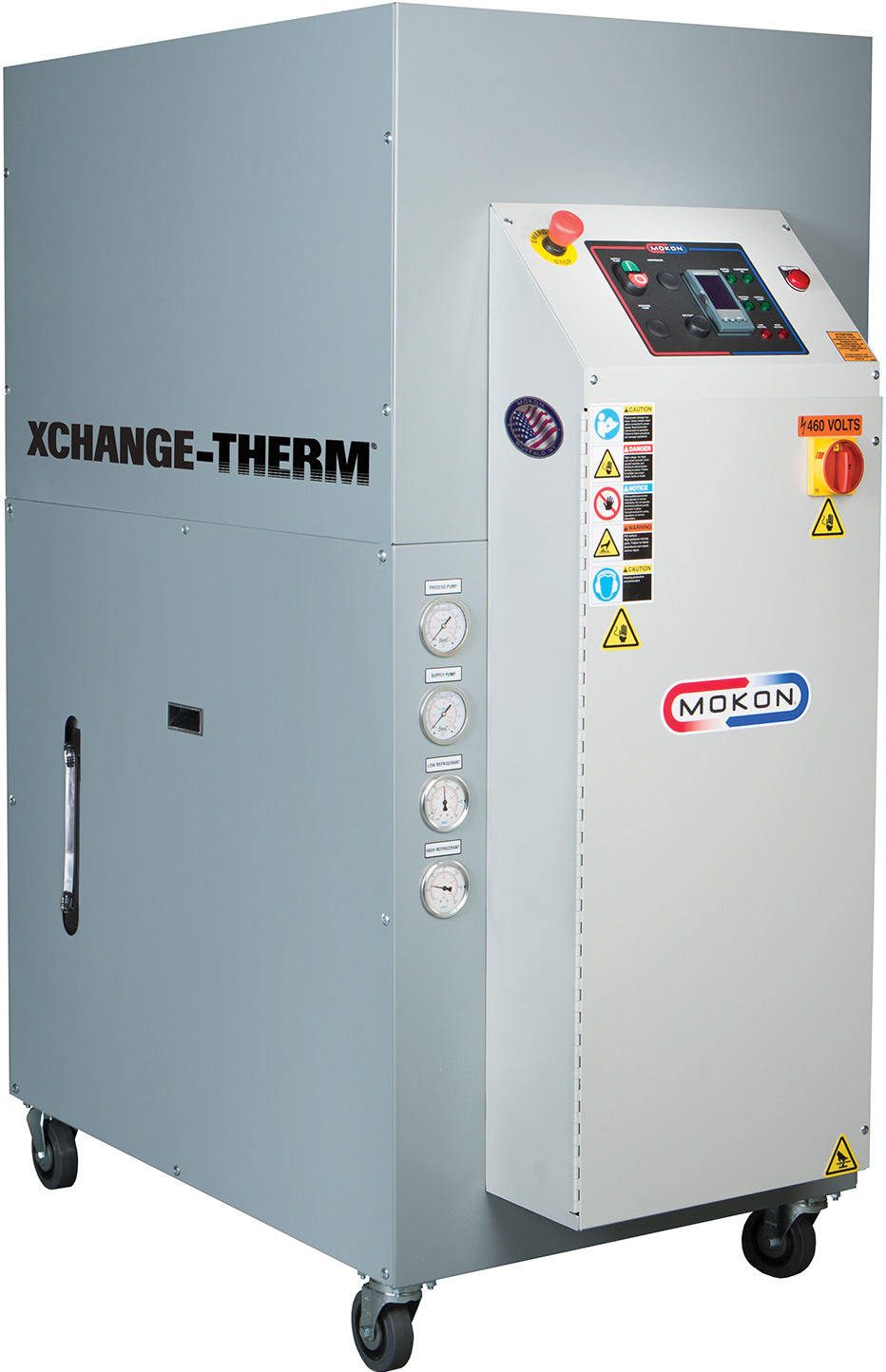

Xchange-Therm Temperature Control System

Mokon's water-based Xchange-Therm temperature control system offers a combination of heating and chilling in one superior package. A Mokon water system combined with a chiller integrates the benefits and features of both products into one compact, self-supporting unit. The Xchange-Therm heating and chilling systems are available with a temperature range of 20°F to 250°F (-7°C to 121°C).

  • Temperatures up to 250°F (121°C)
  • NEMA/Type 1 panels
  • Heating, cooling, or heating & cooling designs
  • Horizontal stainless steel heater canister with unique turbulent flow diverter
  • Small hold-up volume and energy efficient heater design
  • Stainless steel pump, composite impeller, and silicon-carbide seal
  • Non-ferrous materials
  • Non-proprietary microprocessor-based controller in easily accessible panel
  • Safety shut-off switches
  • Solenoid cooling valve
  • Open circuit (direct cooling) or closed circuit (indirect cooling)
  • Heat exchanger (brazed plate or shell & tube)
  • Painted steel powder-coated finish
  • Removable panels for easy maintenance access
  • Heavy-duty removable casters for portability
  • cULus 508A labeled electrical subpanel
  • High temperatures up to 300°F (149°C)
  • Process cooling down to -20°F (-29°C)
  • Heating capacity up to 96 kW and up to 60 Ton chilling capacity
  • Multi-zone circuits
  • 3-A heat exchangers and heat remover designs for process isolation
  • High efficiency pumps up to 10 Hp
  • TEFC motors
  • Suction and discharge pressure gauges
  • Magnetic drive sealless pumps
  • Vented and pressurized tanks
  • Sanitary tri-clamp connections
  • Passivation/electro-polished surfaces
  • Wash down designs
  • Suitable for ISO 14644 cleanroom standard and associated controlled environments
  • Stainless steel cabinetry and wetted parts
  • Welded connections
  • Tool-free access panels
  • Modulating cooling valve
  • Leveling legs
  • Special paint
  • Audible and visual alarms
  • SCR and solid state relays
  • Remote interface electrical enclosures
  • Electronic controllers and RTD's calibrated to ISO 17025 standards
  • Variety of communication capabilities
  • Remote start/stop
  • UL, CSA, CE, and System certifications

Please consult factory for more information.

  • Biotechnology and pharmaceutical
  • Composite materials
  • Converting/printing
  • Extrusion
  • Food and beverage processing
  • Heat exchangers
  • Heat reclamation and reuse
  • Laboratory
  • Medicine and vitamin processing
  • Microelectronics
  • Mixers and blenders
  • Packaging
  • Personal care/cosmetics
  • Pet food processing
  • Plastic injection and blow molding
  • Reactors, sterilizers and fermenters
  • Rubber processing
  • Sanitary and cleanrooms
  • Semiconductor
  • Surgical equipment and devices
  • Vessels/jacketed tanks
Process Fluid Connections (FNPT)
Chilled Fluid Heat Exchanger (BTU/Hr) Steam Supplied Heat Exchanger (BTU/Hr) Pump Hp Flow Rate (GPM) Pressure (PSI) Process Heat Exchanger Tank Size (Gallons) Approximate Dimensions (L x W x H)
20,000 75,000 1/2 15 15 1″ 10 38″ x 25″ x 62″
40,000 200,000 1-1/2 40 32 1-1/2″ 20 50″ x 28″ x 63″
60,000 250,000 2 50 32 20 58″ x 37″ x 69″
100,000 300,000 3 60 34 20 58″ x 37″ x 69″
130,000 400,000 5 80 38 20 58″ x 37″ x 69″
