Engineered Systems & Panels

Xtreme-Therm® Systems

  • Designed specifically for chemical and harsh environments
  • Circulating water temperature control heating up to 300°F (149°C)
  • Circulating oil temperature control system meets process heating requirements up to 650°F (343°C)
  • Portable chillers cooling between -20°F to 65°F (-29°C to 18°C)
  • Combination heating and cooling systems ranging from -20°F to 300°F (-29°C to 149°C)

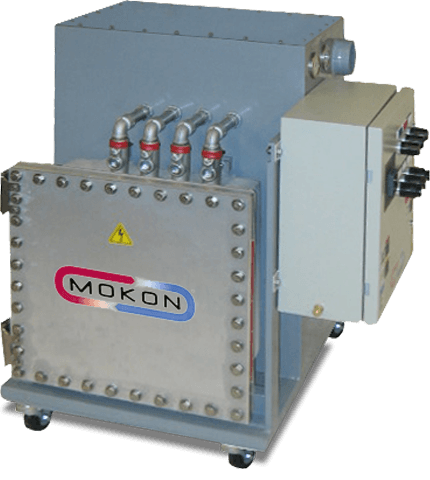

Xtreme-Therm® Water System

Mokon's Xtreme-Therm circulating water temperature control system features advanced heating technology with temperatures up to 250°F (121°C). The high-performance design offers higher heat transfer rates with unmatched control efficiency and accuracy. Built with non-ferrous and stainless steel materials, the Xtreme-Therm water system manages excellent corrosion resistance and leak-free operation in a compact, easy to move unit.

Xtreme-Therm® Heat Transfer Fluid System

Mokon's Xtreme-Therm circulating oil temperature control system meets process heating requirements up to 600°F (315°C). Our durable, high-quality oil systems feature the latest control technology, unique cool oil reservoir philosophy and unmatched electrical/safety standards to ensure precise process fluid temperature control.

Xtreme-Therm® Portable Chiller System

Mokon's Xtreme-Therm portable chillers feature a scroll compressor that provides superior efficiency, unwavering reliability and quiet operation with a fluid temperature range of 20°F to 65°F (-7°C to 18°C). Mokon's portable chillers are available in air and water-cooled condensing, featuring high-quality components for increased life and decreased maintenance, giving you the durable equipment, you need for all your cooling solutions.

Xtreme-Therm® Heating and Chilling System

Mokon's water based Xtreme-Therm temperature control system offers a combination of heating and chilling in one superior package. A Mokon water system combined with a chiller integrates the benefits and features of both products into one compact, self-supporting unit. The Xtreme-Therm heating and chilling systems are available with a temperature range of 20°F to 250°F (-7°C to 121°C).

Trusted Standard Features

  • Temperatures from 20°F to 600°F (-7°C to 315°C)
  • Polyester powder coated heavy-gauge steel cabinets
  • NEMA 4/12 panel with “Z” purge system suitable for Class I Division 2 locations
  • cULus 508A labeled panel
  • UL 98 disconnect switch
  • Microprocessor controller
  • Remote set point and retransmission control and communication capabilities
  • Open loop (direct injection) single circuit design
  • Incoloy sheathed heaters with NEMA 4 housings
  • TEFC motors
  • Suction and discharge pressure gauges
  • Water-cooled and remote air-cooled condensers

Customizable Options

  • Water system temperatures up to 300°F (149°C)
  • Hot oil heat transfer fluid system temperatures up to 650°F (343°C)
  • Process cooling down to -20°F (-29°C)
  • Heating capacity up to 500 kW
  • Chilling capacity up to 120 Ton
  • NEMA 4/12 panel with “X” purge system suitable for Class I Division 1 locations
  • NEMA 7 cast aluminum panel suitable for Class I Division 1 or 2 locations
  • Multi-zone circuits
  • High-efficiency pumps up to 10 Hp
  • Magnetic drive sealless pumps
  • Vented and pressurized tanks
  • Passivation/electro-polish surfaces
  • Tool-free access panels
  • Modulating cooling valve
  • Stainless steel leveling legs
  • Stainless steel and other custom finished cabinetry
  • Audible and visual alarms
  • SCR and solid-state relays
  • Remote interface electrical enclosures
  • Electronic controllers and sensors calibrated to ISO 17025 standards
  • Variety of communication capabilities
  • Remote start/stop

Aerospace & Composites

Mokon's innovative heating and cooling systems meet the requirements of both composite manufacturers and end users for product consistency, accuracy, and quality.

Automotive and Rubber Processing

Mokon's state-of-the-art heat transfer systems and chillers offer the precise temperature control, reliability, and durability required by the automotive and rubber processing industries.

Chemical Processing

Chemical processors require precise, stable fluid temperature control - or otherwise risk lost batches, unmet deadlines or high costs for waste disposal. We offer corrosion-resistant materials that can withstand frequent wash downs and exposure to hazardous atmospheres.

Die Casting

Our engineers have the experience in sizing and constructing quality temperature control systems to meet the extreme thermal dynamics of die casting applications.

Food & Beverage

Whether it's extruding chocolate, mixing dough or fermenting wine, the food and beverage processing industry requires precise temperature control for its manufacturing processes. With a variety of systems, plus expertise in customization, Mokon can meet the needs of any food or beverage company.

Packaging and Printing

When it comes to ensuring tighter tolerances for packaging materials or regulating temperatures in printing presses and rollers, Mokon offers years of experience in designing and engineering high-quality, accurate heating and cooling systems.

Pet Food

To meet the demanding needs of the pet food industry, Mokon offers a wide range of high-performance process temperature control equipment. Our expertise includes NEMA 4X rated panels, stainless steel and wash down construction, food-grade heat exchangers and much more.

Pharmaceutical, Medical and Industrial Hemp

Mokon's innovative line of process heating and cooling systems are designed to meet the pharmaceutical, medical, biomedical and industrial hemp extraction and distillation industry requirements for precise process fluid temperature control.

Plastics Processing

The plastics industry is the third-largest manufacturing industry in the U.S. To keep up with increasing demand, Mokon's expert engineers have developed process heating and cooling equipment that regulates molds, dies and polymer temperatures to ensure effective control.

Power and Energy

Mokon engineers work constantly to create reliable heating and cooling process solutions to meet the evolving needs of power and energy applications.


Semiconductor applications have specific needs that require low defects and precise temperature control. Mokon engineers understand these unique specifications and create systems to meet them exactly.
