Engineered Systems & Panels

Engineered Full Range Systems

Custom Systems Designed and Built to Customer Specifications. Made in the USA.

  • Variety of voltages up to 600 Volt, 1 or 3 Phase, 50 or 60 Hertz
  • Increased fluid flow, heating and cooling capacities
  • Stainless steel construction, painted steel, and non-metallic
  • UL, CE, CSA, EAC, RAC, NFPA, NEMA and ASME designs

Food/Beverage Application

Full Range heat remover system for use in a testing lab at a beverage-bottling manufacturer. System includes a ½-Ton air-cooled chiller, closed circuit with a 4.8 sq.ft. heat exchanger, 30-gallon non-pressurized tank and 20°F to 65F° (-7°C to 18°C) operation.

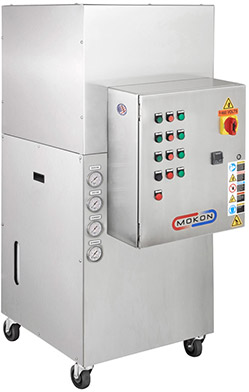

Cleanroom Application

Combination heating and chilling temperature control system for cleanroom environment for the manufacture of small medical components and devices. System includes stainless steel cabinetry and NEMA 4X panel, 5 to 250°F (-15 to 120°C) and semi-hermetic scroll compressor.

Pharmaceutical Application

Full Range combination heating and chilling system in one package for a vessel/reactor application producing cancer fighting drugs and vaccines. Shown in stainless steel construction with a slant-top electrical box for ease of use. Up to 60-Ton chilling capacities, heating capacities up to 96 kW and pumping capacities up to 120 GPM.

Semiconductor Application

Combination heating and chilling system with heating capability up to 250°F (121°C) and cooling down to 25°F (-4°C). System features secondary UPS power feed for auto restart, Cascade controller with SCR, RTD input accuracy of ± 0.2°C, 4-20 mA, and remote setpoint and retransmission.

Mokon can assist with:

  • Heating and cooling load calculations and sizing
  • Recommending system design and features
  • Sizing and selection of heat exchangers
  • Customizing a control solution for your specific application
  • Fluid selection
  • Customer startup and training assistance

Certifications/Capabilities

  • UL, CE, CSA, EAC, RAC, NFPA, NEMA and ASME designs
  • NEMA rated panels — 1, 3, 4, 4X, 7, 12
  • Clean room and wash down designs
  • Sanitary environments
  • Class I Div. I and Div. II hazardous location areas
  • ISO 9001:2015 and ISO 14001:2015

Electrical and Control

  • Variety of voltages up to 600 Volt, 1 or 3 Phase, 50 or 60 Hertz
  • Communication options available
  • Remote set point and re-transmission controllers and communication features
  • Remote interface electrical enclosures
  • Audible and visual alarms
  • SCR and solid state relays
  • Single point utility connections

Range of Capacities and Designs

  • Increased fluid flow, heating and cooling capacities
  • Heat exchangers and heat remover designs
  • Closed and open loop circuitry
  • Single and multi-zone circuits
  • Portable or stationary designs
  • Pressurized and non-pressurized open tanks
  • Indoor or outdoor designs

Variety of Construction Materials and Components

  • Stainless steel construction, painted steel, and non-metallic
  • Custom paint specifications
  • Sealed reservoirs
  • Welded or silver brazed joints
  • TEFC motors and magnetic drive seal-less pumps
  • Tri-clamp and flanged connections
  • Food-grade heat exchangers and acceptable cabinetry
  • Non-marring casters and leveling legs

Aerospace & Composites

Mokon's innovative heating and cooling systems meet the requirements of both composite manufacturers and end users for product consistency, accuracy, and quality.

Automotive and Rubber Processing

Mokon's state-of-the-art heat transfer systems and chillers offer the precise temperature control, reliability, and durability required by the automotive and rubber processing industries.

Chemical Processing

Chemical processors require precise, stable fluid temperature control - or otherwise risk lost batches, unmet deadlines or high costs for waste disposal. We offer corrosion-resistant materials that can withstand frequent wash downs and exposure to hazardous atmospheres.

Die Casting

Our engineers have the experience in sizing and constructing quality temperature control systems to meet the extreme thermal dynamics of die casting applications.

Food & Beverage

Whether it's extruding chocolate, mixing dough or fermenting wine, the food and beverage processing industry requires precise temperature control for its manufacturing processes. With a variety of systems, plus expertise in customization, Mokon can meet the needs of any food or beverage company.

Packaging and Printing

When it comes to ensuring tighter tolerances for packaging materials or regulating temperatures in printing presses and rollers, Mokon offers years of experience in designing and engineering high-quality, accurate heating and cooling systems.

Pet Food

To meet the demanding needs of the pet food industry, Mokon offers a wide range of high-performance process temperature control equipment. Our expertise includes NEMA 4X rated panels, stainless steel and wash down construction, food-grade heat exchangers and much more.

Pharmaceutical, Medical and Industrial Hemp

Mokon's innovative line of process heating and cooling systems are designed to meet the pharmaceutical, medical, biomedical and industrial hemp extraction and distillation industry requirements for precise process fluid temperature control.

Plastics Processing

The plastics industry is the third-largest manufacturing industry in the U.S. To keep up with increasing demand, Mokon's expert engineers have developed process heating and cooling equipment that regulates molds, dies and polymer temperatures to ensure effective control.

Power and Energy

Mokon engineers work constantly to create reliable heating and cooling process solutions to meet the evolving needs of power and energy applications.

Semiconductor

Semiconductor applications have specific needs that require low defects and precise temperature control. Mokon engineers understand these unique specifications and create systems to meet them exactly.
