Engineered Power & Process Control Panels
Power and Process Control Systems for Commercial and Industrial Applications
- Hazardous Area Control Panel
- Engineered Control Panel
- Outdoor Control Panel
- Multi-Zone Process Control Heating Control Panel
- Conveyer Jacket Heater Control Panel

Hazardous Area Control Panel
UL Approved control panel located in a hazardous location — Class I, Division II, Group C/D controlling process heaters. Panel has 460 Volt 3 Phase main circuit breaker, single zone, and viewing window for sub-panel mounted electronic control.

Engineered Control Panel
Custom four door multi-circuit 460 Volt 3 Phase free-standing panel with electronic indicating PID controllers and large screen display.

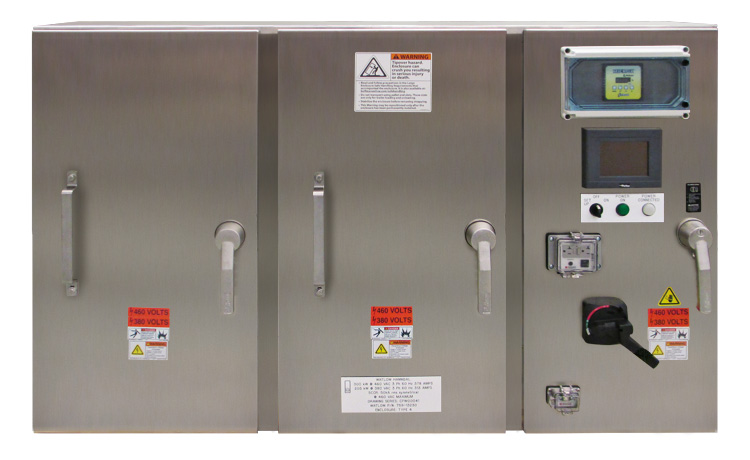

Outdoor Control Panel
Outdoor 300 kW NEMA/Type 4X stainless steel enclosure with 2 removable doors, 600 amp fused disconnect, 8 circuits with SCR control, PLC touch screen and oxygen analyzer & sensor.

Multi-Zone Process Control Heating Control Panel
3 Zone UL 508A Approved electrical control panel for process heating temperature control. The panel has a main door disconnect and each circuit has an electronic PID digital control with high limit safety and fused control circuit.

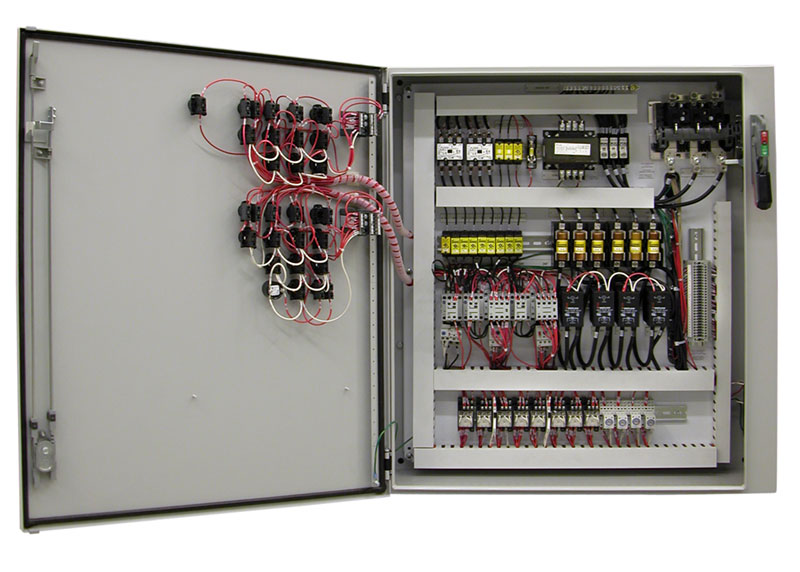

Conveyer Jacket Heater Control Panel
NEMA/Type rated UL 508A Approved electrical control panel for process heating temperature control. Mokon panel has 460 Volt 3 Phase main power disconnect, electronic PID digital control, high temperature limit, and fused control circuit.
Enclosures/Cabinetry
- NEMA/Type 1, 3, 4, 4X, 7 and 12 rated enclosures
- UL 508A Certification — Open and Enclosed Types
- UL NRBx Certification — Intrinsically Safe Designs
- UL NNNY Certification — Hazardous Location Designs
- Explosion proof “X” and “Z” purge systems
- Wash down designs with stainless steel enclosures
- Customized cabinetry and colors
- Electrical enclosure ventilation fans with filtration
- Special dimensional requirements
- OEM specified construction materials
Typical Components
- Primary voltages from 120 Volt to 600 Volt
- Secondary voltages include 24V, 120V, 208V and 240V
- Single or three phase circuits
- Fused and unfused disconnects — through-the-door and flange mounted
- Circuit breakers
- Power distribution blocks
- SCRs, VFDs and PLC interfacing
- Redundant heater contactors
- Push to test lights and buttons
- Allen Bradley flex I/O capabilities
- Stacking lights
- AB “PICO” relay saving devices
- Cubed fusing
- Terminal blocks for customer interfacing
- Panel heaters and coolers
Control Features
- Various communication capabilities
- Linear: 0-5V, 0-10V, 4-20mA
- Serial: RS485, RS232
- Modbus, Profibus, Ethernet
- Alarm capabilities
- Programmable logic controllers
- Customer preferred controls
