Duratherm MAX

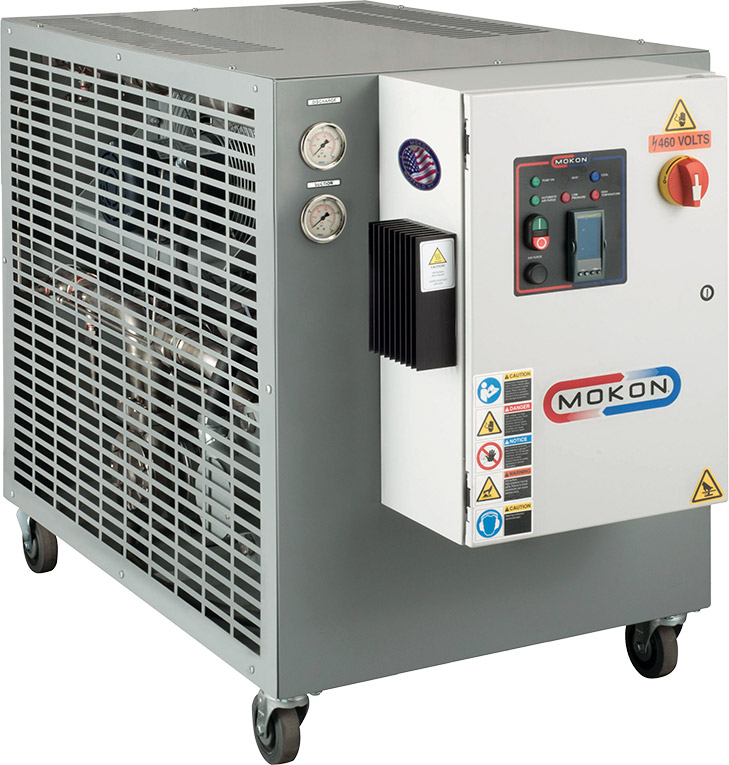

Mokon's Duratherm MAX circulating water temperature control system maximizes performance with temperatures up to 380°F (193°C) and system pressures up to 300 PSI (20.7 BAR). The Duratherm MAX is ideal for restrictive processes and high temperature water applications.
This Duratherm design features a stainless steel heater vessel that is designed and tested to ASME standards. The system utilizes nonferrous and stainless steel materials of construction and a seal-less magnetic drive turbine pump fitted with a stainless steel impeller (D4 Series) or an end suction centrifugal pump (D3 Series). The Duratherm MAX utilizes an inline heat exchanger that provides safe and dependable cooling of the process fluid and eliminates thermal shock, flashing to steam, mineral buildup and expansion noise.
- Single zone configurations
- Stainless steel sealless magnetic drive turbine pump (D4 Series)
- Ductile iron centrifugal pump (D3 Series)
- Horizontal stainless steel heater vessel designed and tested to ASME Code
- Stainless steel piping and welded connections
- Welded joints to ASME BPVC Section IX
- Modern PLC-based control system in easily accessible panel
- Fluid high temperature shut-off switch
- Pressure relief valve
- Air-cooled heat exchanger for rapid cooling (D4 Series)
- Fluid-to-fluid steel heat exchanger (D3 Series)
- Solenoid cooling valve
- Automatic air purge
- Solid state and redundant contractors (D4 Series)
- Suction and discharge pressure gauges
- Heavy-duty removable casters for portability
- Main power door disconnect
- Powder-coated finish
- cULus 508A labeled electrical subpanel
Additional Features:
- Small hold-up volume and energy-efficient heater design
- Compact, sleek vertical design
- Extended warranty:
- 1 year on system
- 3 years on microprocessor controller
- Alarms – audible and visual
- Closed loop circuitry
- Common supply and drain connections
- Control options – remote setpoint and re-transmission, communication ports
- Cool down/automatic shut off via time delay relay
- Cooling or chiller circuits
- D3 Series available up to 340°F (171°C)
- Emergency “crash” cooling control
- Heat exchangers
- Heat remover design
- High/low heater operation (manual or automatic)
- Manifolds
- Modulating valves
- NEMA/Type 4, 4X, and 12
- NFPA 79 electrical safety standards
- Other heater capacities and ASME Code Stamped vessel
- Other voltages, phases, frequencies
- Overhead piping kits
- Pressure regulator
- Redundant heater contactor (D3 Series)
- Remote start/stop and control panels
- Solid state contactors/relays and SCR (D3 Series)
- Stainless steel cabinets and components
- TEFC motor
- UL and CSA certifications
- Valve process bypass
Please consult factory for more information.
Features of Standard and Advanced Controls
Mokon offers modern PLC-based control solutions designed to provide reliable temperature management, intuitive operation, and seamless integration with today's manufacturing environments. Whether your application requires straightforward process temperature control or advanced automation capabilities, Mokon's control platforms deliver the performance, connectivity, and flexibility needed to support a wide range of industrial processes.
Mokon M-Control Essential
The Mokon M-Control Essential platform provides dependable temperature control through an intuitive operator interface and industrial-grade PLC architecture. Designed for applications requiring simplicity, reliability, and ease of operation, M-Control Essential delivers precise temperature management while providing operators with clear system status, alarm notifications, and diagnostic information.
Standard features include:
- Compact PLC-based control system
- Accurate PID temperature control
- Intuitive push-button control
- Multi-color display
- Real-time process and setpoint temperature display
- Automatic heating and cooling control
- Built-in alarms and safety monitoring
- Role-based user access levels
- Diagnostic and troubleshooting capabilities
M-Control Essential is ideal for applications requiring proven performance, simplified operation, and dependable process control.
Mokon M-Control Advanced
The Mokon M-Control Advanced platform expands control capabilities with enhanced automation, connectivity, and process visibility. Designed for demanding industrial environments, M-Control Advanced provides advanced monitoring, expanded communication capabilities, and integration with plant-wide automation systems.
Advanced features include:
- Powerful PLC-based control system
- Color touchscreen operator interface
- Advanced process monitoring and diagnostics
- On-device and exportable data logging and trending capabilities
- Remote monitoring and service support capabilities
- Customizable control logic and application-specific functionality
- Expandable I/O architecture
- Secure, multi-user access management
- Integration with facility automation and supervisory control systems
- Designed for Industry 4.0 environments
Communication capabilities may include:
- EtherNet/IP™
- PROFINET®
- Modbus TCP/IP
- Modbus RTU
- OPC UA
- Additional industrial networking protocols as required
Designed for Industry 4.0 environments, M-Control Advanced enables seamless communication with Allen-Bradley®, Siemens®, Schneider Electric®, and other leading automation platforms, providing greater process visibility, improved operational efficiency, and enhanced production control.
Custom Control Solutions
Mokon's engineering team can develop custom control solutions to meet unique process requirements. From specialized operator interfaces and communication protocols to plant-wide automation integration, Mokon can provide a control package tailored to your application while maintaining the quality, reliability, and support customers have come to expect from Mokon temperature control equipment.
D3 Series — Up to 330°F (166°C)*
| Model | Pump (Nominal) | Flow Rate & Pressure | Heating Capacity & Total Amps* (9 kW) |
Heating Capacity & Total Amps* (18 kW) |
Heating Capacity & Total Amps* (24 kW) |
Heating Capacity & Total Amps* (36 kW) |
Heating Capacity & Total Amps* (48 kW) |
Process Connection | Supply/Drain Connection | Approximate Dimensions (L x W x H) | Shipping Weight (Approx lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| D3B | 1½ Hp | 25 GPM @ 39 PSI | 15 | 26 | 34 | 49 | 64 | 1" FNPT | 1" FNPT | 37" x 25" x 39" | 375 |
| D3C | 2 Hp | 40 GPM @ 43 PSI | 16 | 27 | 35 | 50 | 65 | 1-½" FNPT | 1" FNPT | 37" x 25" x 39" | 400 |
| D3F | 3 Hp | 60 GPM @ 48 PSI | 17 | 29 | 36 | 51 | 66 | 1-½" FNPT | 1" FNPT | 37" x 25" x 39" | 425 |
*340°F (171°C) available - please contact Mokon for more information
D4 Series — Up to 380°F (193°C)
| Model | Pump (Nominal) | Flow Rate & Pressure (GPM @ 43 PSI) | Flow Rate & Pressure (GPM @ 21 PSI) | Heating Capacity & Total Amps* (12 kW) | Heating Capacity & Total Amps* (24 kW) | Process Connection | Supply/Drain Connection | Approximate Dimensions (L x W x H) |
Shipping Weight (Approx lbs.) |
|---|---|---|---|---|---|---|---|---|---|
| D4B | 1½ Hp | 4 | 6 | 20 | 35 | 1″ FNPT | 1/2″ FNPT | 50″ x 28″ x 39″ | 650 |
| D4C | 2 Hp | 8 | 12 | 21 | 36 | 1″ FNPT | 1/2″ FNPT | 50″ x 28″ x 39″ | 675 |
| D4F | 3 Hp | 15 | 20 | 22 | 37 | 1″ FNPT | 1/2″ FNPT | 50″ x 28″ x 39″ | 700 |
| D4E | 5½ Hp | 27 | 34 | 26 | 41 | 1½″ FNPT | 1/2″ FNPT | 50″ x 28″ x 39″ | 720 |
*460 Volt, 3 Phase, 60 Hertz (for 230 Volt, double the listed amps).
Available in a variety of voltages and capacities. Please contact Mokon for more information.
