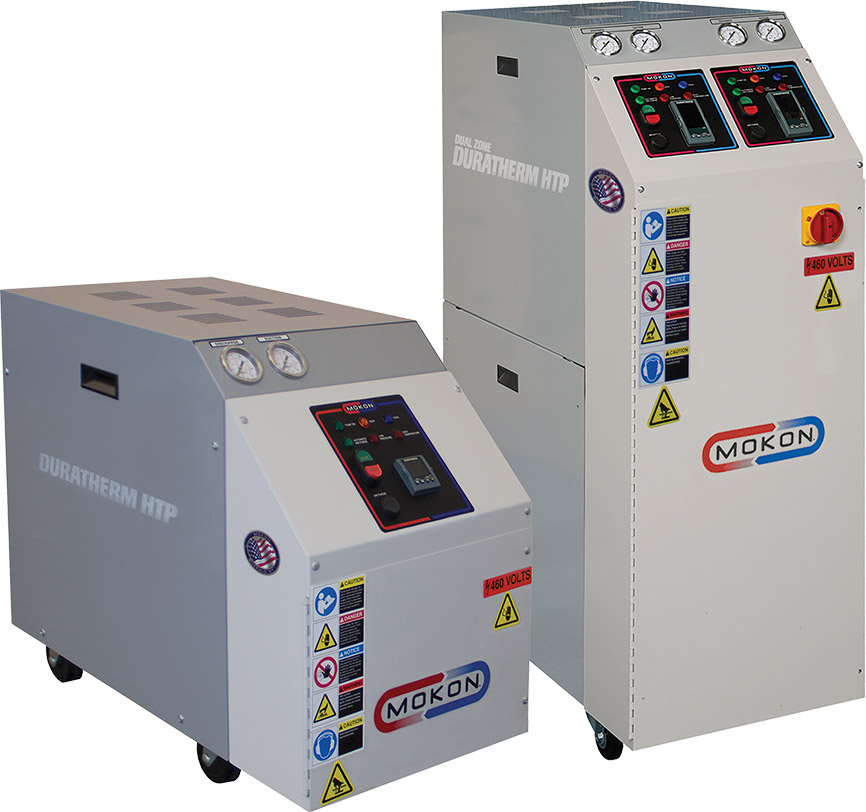

Duratherm HTP

Duratherm HTP

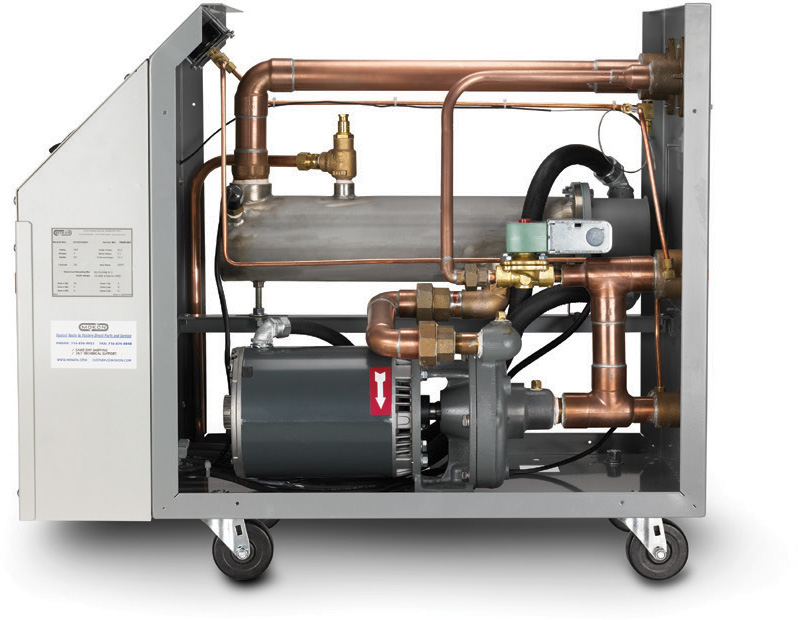

Duratherm inside
Dual Zone Configuration

Mokon's Duratherm HTP circulating water temperature control system maximizes performance with temperatures up to 300°F (149°C) with a required water pressure of 60 PSI. Designed for restrictive processes or those requiring higher fluid temperature or pressure, the HTP system adds a stainless steel pump to the Duratherm design, resulting in high temperature and pressure capabilities.

All Duratherm systems come standard with a cULus 508A labeled electrical sub-panel. All these features and more, combined with our extended warranty, make the Duratherm an easy choice for delivering precise and accurate temperature control.

Download Datasheet Request a Quote
  • Single and dual zone configurations
  • Compact, portable design
  • Stainless steel pump and impeller 5 to 10 Hp (composite impeller 1½ to 3 Hp) and silicon-carbide seal
  • Horizontal stainless steel heater canister with unique turbulent flow diverter
  • Small hold-up volume and energy-efficient heater design
  • Modern PLC-based control system in easily accessible panel
  • Low pressure shut-off switch
  • Fluid high temperature shut-off switch
  • Pressure relief valve
  • Solenoid cooling valve
  • Cast brass fluid connections securely mounted to cabinet
  • Suction and discharge pressure gauges
  • Removable panel for easy access to heater
  • Heavy-duty removable casters for portability
  • Powder-coated finish
  • cULus 508A labeled electrical subpanel
Additional Features:
  • High temperature/high pressure design up to 300°F
  • Extended warranty:
    • 1 year on system
    • 3 years on microprocessor controller

Same product features apply to the Dual Zone configuration shown below.

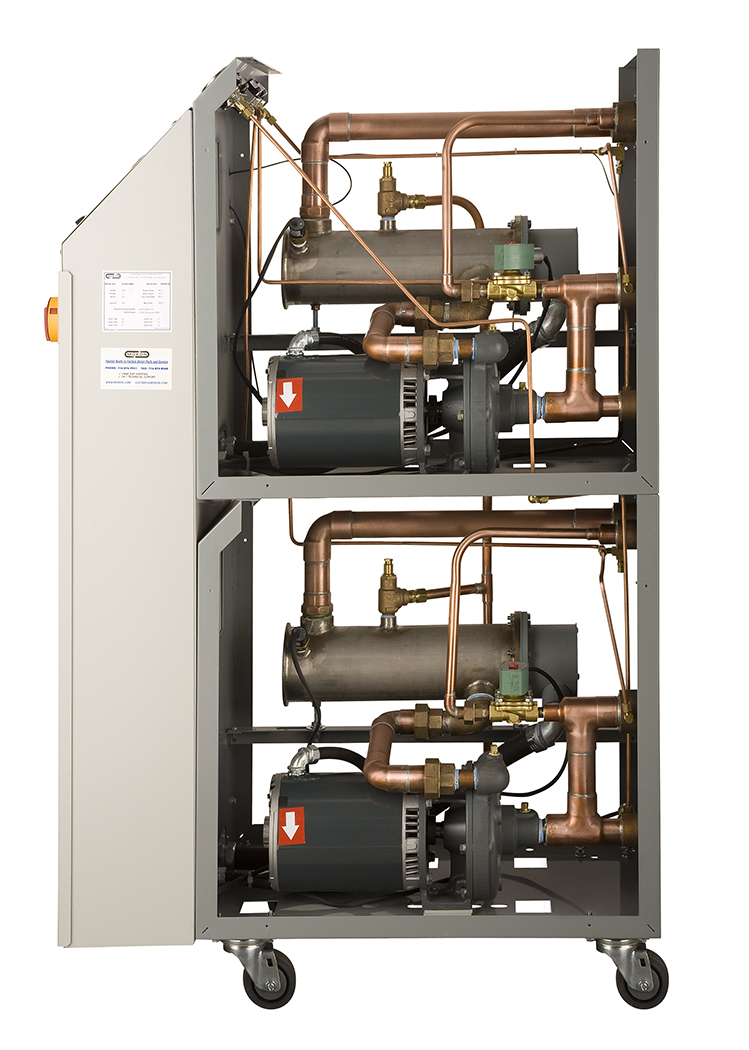

dual zone configuration
  • Alarms – audible and visual
  • Atmospheric and pressurized tanks
  • Closed loop circuitry
  • Common supply and drain connections
  • Control options – remote setpoint and re-transmission, communication ports
  • Cool down/automatic shut off via time delay relay
  • Cooling or chiller circuits
  • Door disconnect switch (standard on some models)
  • Emergency “crash” cooling control
  • Heat exchangers
  • Heat remover design
  • Magnetic drive pumps
  • Manifolds
  • Manual high/low heat selector switch (standard on some models)
  • Modulating valves
  • NEMA/Type 4, 4X, 7, 12 and X and Z purge designs
  • NFPA 79 electrical safety standards
  • Other voltages, phases, frequencies
  • Overhead piping kits
  • Power cord (standard on some models)
  • Pressure regulator
  • Process line fluid purge via air connection
  • Redundant heater contactor
  • Remote start/stop and control panels
  • Solid state contactors/relays and SCR
  • Stacking racks
  • Stainless steel cabinets, fluid circuits and components
  • TEFC motor
  • UL, CSA, CE and EAC certifications
  • Valve process bypass

Please consult factory for more information.

Features of Standard and Advanced Controls

Mokon offers modern PLC-based control solutions designed to provide reliable temperature management, intuitive operation, and seamless integration with today's manufacturing environments. Whether your application requires straightforward process temperature control or advanced automation capabilities, Mokon's control platforms deliver the performance, connectivity, and flexibility needed to support a wide range of industrial processes.

Mokon M-Control Essential

Mokon M-Control Essential

The Mokon M-Control Essential platform provides dependable temperature control through an intuitive operator interface and industrial-grade PLC architecture. Designed for applications requiring simplicity, reliability, and ease of operation, M-Control Essential delivers precise temperature management while providing operators with clear system status, alarm notifications, and diagnostic information.

Standard features include:

  • Compact PLC-based control system
  • Accurate PID temperature control
  • Intuitive push-button control
  • Multi-color display
  • Real-time process and setpoint temperature display
  • Automatic heating and cooling control
  • Built-in alarms and safety monitoring
  • Role-based user access levels
  • Diagnostic and troubleshooting capabilities

M-Control Essential is ideal for applications requiring proven performance, simplified operation, and dependable process control.

Mokon M-Control Advanced

Mokon M-Control Advanced

The Mokon M-Control Advanced platform expands control capabilities with enhanced automation, connectivity, and process visibility. Designed for demanding industrial environments, M-Control Advanced provides advanced monitoring, expanded communication capabilities, and integration with plant-wide automation systems.

Advanced features include:

  • Powerful PLC-based control system
  • Color touchscreen operator interface
  • Advanced process monitoring and diagnostics
  • On-device and exportable data logging and trending capabilities
  • Remote monitoring and service support capabilities
  • Customizable control logic and application-specific functionality
  • Expandable I/O architecture
  • Secure, multi-user access management
  • Integration with facility automation and supervisory control systems
  • Designed for Industry 4.0 environments

Communication capabilities may include:

  • EtherNet/IP™
  • PROFINET®
  • Modbus TCP/IP
  • Modbus RTU
  • OPC UA
  • Additional industrial networking protocols as required

Designed for Industry 4.0 environments, M-Control Advanced enables seamless communication with Allen-Bradley®, Siemens®, Schneider Electric®, and other leading automation platforms, providing greater process visibility, improved operational efficiency, and enhanced production control.

Custom Control Solutions

Mokon's engineering team can develop custom control solutions to meet unique process requirements. From specialized operator interfaces and communication protocols to plant-wide automation integration, Mokon can provide a control package tailored to your application while maintaining the quality, reliability, and support customers have come to expect from Mokon temperature control equipment.

Model Pump Flow Rate & Pressure Heating Capacity (kW) Process Connection Drain/Supply Connection Approximate Dimensions
(L x W x H)		 Shipping Weight
(Approx. lbs.)
DB 1½ Hp 25 GPM @ 50PSI 9/18/24 1″ 1″ 32″ x 17″ x 28″ 150 lbs.
DB 1½ Hp 25 GPM @ 50PSI 36/48 1″ 1″ 33″ x 17″ x 52″ 275 lbs.
DB 1½ Hp 25 GPM @ 50PSI 72 1″ 1″ 33″ x 17″ x 52″ 300 lbs.
DB 1½ Hp 25 GPM @ 50PSI 96 1″ 1″ 37″ x 25″ x 39″ 325 lbs.
DC 2 Hp 40 GPM @ 50PSI 9/18/24 1½″ 1″ 32″ x 17″ x 28″ 160 lbs.
DC 2 Hp 40 GPM @ 50PSI 36/48 1½″ 1″ 33″ x 17″ x 52″ 285 lbs.
DC 2 Hp 40 GPM @ 50PSI 72 1½″ 1″ 33″ x 17″ x 52″ 310 lbs.
DC 2 Hp 40 GPM @ 50PSI 96 1½″ 1″ 37″ x 25″ x 39″ 335 lbs.
DF 3 Hp 60 GPM @ 50PSI 9/18/24 1½″ 1″ 32″ x 17″ x 28″ 170 lbs.
DF 3 Hp 60 GPM @ 50PSI 36/48 1½″ 1″ 33″ x 17″ x 52″ 295 lbs.
DF 3 Hp 60 GPM @ 50PSI 72 1½″ 1″ 33″ x 17″ x 52″ 320 lbs.
DF 3 Hp 60 GPM @ 50PSI 96 1½″ 1″ 37″ x 25″ x 39″ 345 lbs.
DE 5 Hp 80 GPM @ 60 PSI 9/18/24 1½″ 1″ 32″ x 17″ x 28″ 185 lbs.
DE 5 Hp 80 GPM @ 60 PSI 36/48 1½″ 1″ 33″ x 17″ x 52″ 310 lbs.
DE 5 Hp 80 GPM @ 60 PSI 72 1½″ 1″ 33″ x 17″ x 52″ 335 lbs.
DE 5 Hp 80 GPM @ 60 PSI 96 1½″ 1″ 37″ x 25″ x 39″ 360 lbs.
DD 7½ Hp 100 GPM @ 60 PSI 9/18/24 2″ 1″ 32″ x 17″ x 28″ 250 lbs.
DD 7½ Hp 100 GPM @ 60 PSI 36/48 2″ 1″ 33″ x 17″ x 52″ 375 lbs.
DD 7½ Hp 100 GPM @ 60 PSI 72 2″ 1″ 33″ x 17″ x 52″ 400 lbs.
DD 7½ Hp 100 GPM @ 60 PSI 96 2″ 1″ 37″ x 25″ x 39″ 425 lbs.
DA 10 Hp 120 GPM @ 70 PSI 9/18/24 2″ 1″ 38″ x 17″ x 28″ 300 lbs.
DA 10 Hp 120 GPM @ 70 PSI 36/48 2″ 1″ 39″ x 17″ x 52″ 425 lbs.
DA 10 Hp 120 GPM @ 70 PSI 72 2″ 1″ 39″ x 17″ x 52″ 450 lbs.
DA 10 Hp 120 GPM @ 70 PSI 96 2″ 1″ 37″ x 25″ x 39″ 475 lbs.

* Duratherm HTP systems are also available in dual zone configurations and a variety of voltages. Please contact Mokon for more information.
