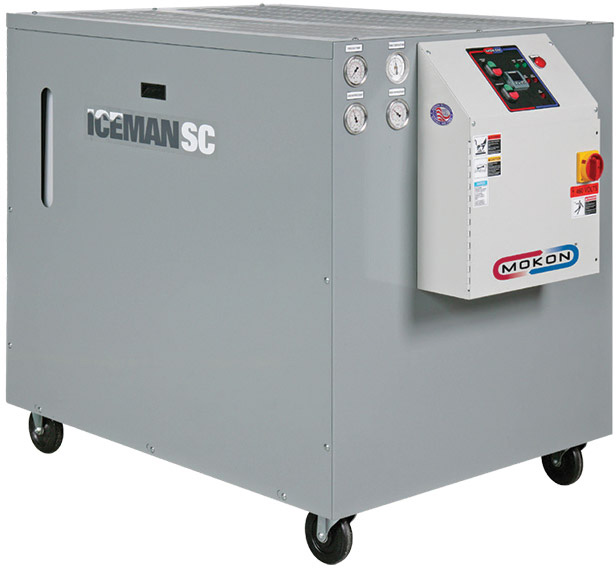

Iceman SC Series

Iceman SC Series

Portable Chiller SystemsPortable Chiller Systems

Download Datasheet

The Mokon Iceman SC Series portable chillers feature a scroll compressor providing superior efficiency, enhanced reliability and quieter operation (reciprocating and semi-hermetic compressors available in some models). The scroll compressor has 50% fewer moving parts than standard reciprocating compressors - increasing the reliability and efficiency of the compressor.

High Quality Components Increase Life and Decrease Maintenance

  • Nonferrous plumbing and components
  • Efficient stainless steel brazed plate evaporator
  • Stainless steel centrifugal pump
  • Liquid filled pressure gauges

Operator Friendly Design with Maximum Safety and Control

  • Microprocessor control for greater accuracy
  • Easy-to-access control panel and internal components
  • Motor, compressor and transformer fusing to ensure operator safety
  • NEMA rated electrical enclosure

Request for Quote?
All of our products can be customized.

Start Here
Fluid Temperature Range: 5°F to 30°F (-15°C to -1°C)
Model
(Air-Cooled)
Nominal Cooling Capacity (BTU/hr) 1 Pump Horsepower (Hp) Min/Max Flow Rate (GPM) Nominal Pressure (PSI) Process Connection (FNPT) Tank Size (Gallons) Approximate Dimensions (L x W x H) Approximate Shipping Weight (lbs.)
ASL-1.5 9,100 @ 5°F
18,600 @ 30°F
1.5 4/25 Up to 45 1" 15 48"L x 28"W x 39"H 525
ASL-2 14,600 @ 5°F
28,400 @ 30°F
1.5 5/25 Up to 45 1" 15 48"L x 28"W x 39"H 525
ASL-3 22,150 @ 5°F
42,300 @ 30°F
2.0 7/40 Up to 42 1-½" 20 56"L x 37"W x 45"H 650
ASL-5 32,400 @ 5°F
62,150 @ 30°F
3.0 12/40 Up to 53 1-½" 20 56"L x 37"W x 45"H 800
ASL-7.5 48,850 @ 5°F
90,650 @ 30°F
3.0 18/50 Up to 50 1-½" 20 56"L x 37"W x 45"H 890
Model
(Water-Cooled)
Nominal Cooling Capacity (BTU/hr) 2 Pump Horsepower (Hp) Min/Max Flow Rate (GPM) Nominal Pressure (PSI) Process Connection (FNPT) Condenser Connection (FNPT) Tank Size (Gallons) Approximate Dimensions (L x W x H) Approximate Shipping Weight (lbs.)
WSL-1.5 9,800 @ 5°F
19,675 @ 30°F
1.5 4/25 Up to 45 1" 1" 15 48"L x 28"W x 39"H 525
WSL-2 15,600 @ 5°F
29,800 @ 30°F
1.5 5/25 Up to 45 1" 1" 15 48"L x 28"W x 39"H 525
WSL-3 23,500 @ 5°F
44,600 @ 30°F
2.0 7/40 Up to 42 1-½" 1" 20 56"L x 37"W x 45"H 650
WSL-5 34,400 @ 5°F
65,475 @ 30°F
3.0 12/40 Up to 53 1-½" 1-½" 20 56"L x 37"W x 45"H 800
WSL-7.5 51,200 @ 5°F
94,450 @ 30°F
3.0 18/50 Up to 50 1-½" 1-½" 20 56"L x 37"W x 45"H 890

1 Air-cooled based on 5 to 30°F chilled water at 2.4 GPM/Ton and 85°F condensing water at 3 GPM/Ton.

2 Water-cooled based on 5 to 30°F chilled water at 2.4 GPM/Ton and 85°F condensing water at 3 GPM/Ton.

* Capacities based on the use of 35% ethylene glycol.



Fluid Temperature Range: 20°F to 65°F (-7°C to 18°C)
Model
(Air-Cooled)
Nominal Cooling Capacity (Tons) 1 Compressor Horsepower (Hp) Pump Horsepower (Hp) Min/Max Flow Rate (GPM) Nominal Pressure (PSI) Process Connection (FNPT) Tank Size (gallons) Approximate Dimensions (L x W x H) Approximate Shipping Weight (lbs.)
AC-.5* 0.5 1/2 3/4 1.2/10 Up to 32 1" 10 36" x 25" x 38" 300
AC-1* 1 1 3/4 2.4/15 Up to 32 1" 10 36" x 25" x 38" 330
AC-1.5* 1.5 1.5 3/4 3.6/15 Up to 31 1" 15 48" x 28" x 39" 425
AS-2** 2 2 3/4 4.8/20 Up to 30 1" 15 48" x 28" x 39" 450
AS-3** 3 3 3/4 7.2/25 Up to 30 1" 15 48" x 28" x 39" 460
AS-5** 5 5 1 12/30 Up to 37 1-1/2" 20 56" x 37" x 45" 565
AS-7.5** 7.5 7.5 1 18/30 Up to 34 1-1/2" 20 56" x 37" x 45" 840
AS-10** 10 10 1.5 24/35 Up to 37 1-1/2" 20 56" x 37" x 45" 860
AS-12** 12 13 2 28/40 Up to 40 1-1/2" 68 78" x 40" x 65" 1,750
AS-15** 15 15 3 36/50 Up to 55 1-1/2" 68 78" x 40" x 65" 1,750
AS-20** 20 20 3 48/50 Up to 48 1-1/2" 68 78" x 40" x 65" 1,850
AS-25** 25 25 5 60/70 Up to 60 2" 100 142" x 50" x 80" 3,700
AS-30** 30 30 7.5 72/90 Up to 50 2" 100 142" x 50" x 80" 3,860
AS-40** 40 20/20 7.5 96/100 Up to 50 2" 100 200" x 52" x 85" 4,995
AS-50** 50 25/25 10 120/140 Up to 65 3" 100 200" x 52" x 85" 5,495
Model
(Water-Cooled)
Nominal Cooling Capacity (Tons) 1 Compressor Horsepower (Hp) Pump Horsepower (Hp) Min/Max Flow Rate (GPM) Nominal Pressure (PSI) Process Connection (FNPT) Condender Connections (FNPT) Tank Size (gallons) Air-Cooled Dimensions (L x W x H) 2 Approximate Shipping Weight (lbs.)
WC-.5* 0.5 1/2 3/4 1.2/10 Up to 32 1" 1/2" 10 36" x 25" x 38" 320
WC-1* 1 1 3/4 2.4/15 Up to 32 1" 1/2" 10 36" x 25" x 38" 350
WC-1.5* 1.5 1.5 3/4 3.6/15 Up to 31 1" 1/2" 15 36" x 25" x 38" 400
WS-2** 2 2 3/4 4.8/20 Up to 30 1" 1/2" 15 36" x 25" x 38" 410
WS-3** 3 3 3/4 7.2/25 Up to 30 1" 1/2" 15 36" x 25" x 38" 430
WS-5** 5 5 1 12/30 Up to 37 1-1/2" 1" 20 48" x 28" x 39" 515
WS-7.5** 7.5 7.5 1 18/30 Up to 34 1-1/2" 1-1/2" 20 56" x 37" x 45" 790
WS-10** 10 10 1.5 24/35 Up to 37 1-1/2" 1-1/2" 20 56" x 37" x 45" 810
WS-12** 12 13 2 28/40 Up to 40 1-1/2" 1-1/2" 68 58" x 37" x 69" 1,500
WS-15** 15 15 3 36/50 Up to 55 1-1/2" 1-1/2" 68 80" x 38" x 45" 1,750
WS-20** 20 20 3 48/50 Up to 48 1-1/2" 1-1/2" 68 80" x 38" x 45" 1,775
WS-25** 25 25 5 60/70 Up to 60 2" 2" 100 142" x 50" x 50" 3,675
WS-30** 30 30 7.5 72/90 Up to 80 2" 2" 100 142" x 50" x 50" 3,760
WS-40** 40 20/20 10 96/100 Up to 70 2" 2" 100 200" x 52" x 55" 3,330
WS-50** 50 25/25 10 120/140 Up to 65 3" 3" 100 200" x 52" x 85" 5,495

1 Air-cooled based on 50°F chilled water at 2.4 GPM/Ton and 90°F ambient air. Water-cooled based on 50°F chilled water at 2.4 GPM/Ton and 85°F condensing water at 3 GPM/Ton.

2 Water-cooled dimensions will be the same as or smaller than air-cooled models.

* Standard compressor on 0.5—1.5 Ton is reciprocating type. These models are not available in the scroll compressor.

** Standard compressor is scroll type.

Fluid range up to 75°F is available as an option.

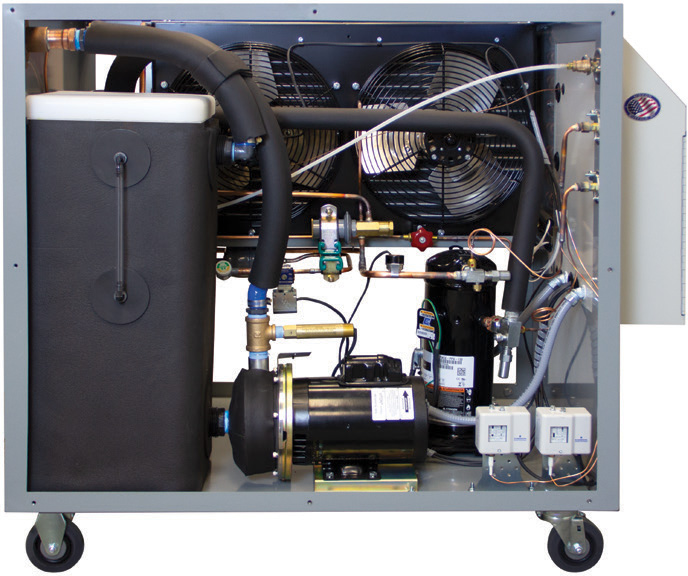

Iceman SC Series
  1. Microprocessor-based controller in easily accessible panel
  2. Electrical enclosure with safety door disconnect switch
  3. Scroll compressor
  4. Flow switch
  5. Stainless steel centrifugal supply pump
  6. Heavy-duty insulated plastic tank with sight glass
  7. Highly efficient brazed plate evaporator (not shown)
  8. Insulated nonferrous plumbing and components
  9. Air-cooled condenser (shown) or water-cooled condenser
  10. Hot gas bypass circuit
Additional Features:
  • NFPA 79 electrical safety standards
  • UL 508A labeled electrical sub-panel
  • Green friendly refrigerant
  • Digital freezestat protection
  • Low and high refrigeration switch protection
  • Durable, powder coated cabinet
  • Warranty
    • 1 year on system
    • 1 year on solid state controllers
    • 3 years on custom controllers
    • 5 years on microprocessor controllers and safeties

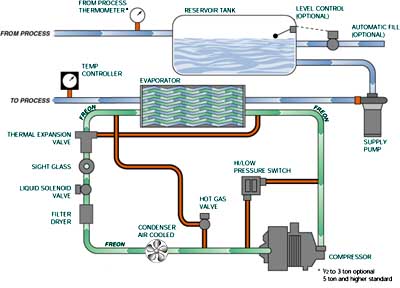

Typical Flow Schematic
Iceman SC Series

Please consult factory for more information.

  • Air duct flange (top)
  • Alarms - audible and visual
  • Auto fill
  • Blown fuse indication
  • Control options - remote setpoint and re-transmission, communication ports, and much more
  • CPR valve
  • Flow meters
  • Low water level indication
  • Low/High refrigerant gauges
  • Other voltages, phases, frequencies
  • Overhead piping kit
  • Phase indicator
  • Power cord
  • Process purge (manual & automatic)
  • Pump modifications to increase flow capacity or elimination of supply pump
  • Remote condenser
  • Special paint
  • Strainers (process return)
  • Supply and return thermometers
  • Tank upgrades and modifications
  • TEFC pump motor
  • Valved process bypass

Features of Standard and Optional Controls

A variety of controls are available from Mokon to enhance the high performance of our systems. From solid state to microprocessor based, with communication capabilities to PLC type controls, Mokon can provide the type of control package right for your process.


Eurotherm 3216 Series

The Eurotherm 1/16 DIN (3216) microprocessor controller is operator friendly and easy-to-use. Standard features include a microprocessor controller for the highest accuracy in temperature control, a dual LCD display that shows set point and actual fluid temperature, and scrolling text messages that deliver plain language messages to let users know exactly what is happening to the process. There are optional 1/8 or 1/4 DIN controllers available, with high/low deviation alarm, remote set point and retransmission and serial communication. A five-year warranty comes standard with the controller.


Eurotherm 3216 Spec Sheet
Eurotherm 3200 Series Manual

Custom Controls

Mokon’s ability to meet customers’ specific requirements is seen not only in custom system designs, but also in controls. Our engineers can custom design a control package that meets your specific processing needs, from brand name controls, to direct computer/host machine interfacing. All of which can be expected with the same quality and durability that our customers expect from our complete line of temperature control systems.
