Iceman Micro Series

Iceman Micro Series

Portable Chiller SystemsPortable Chiller Systems

Download Datasheet

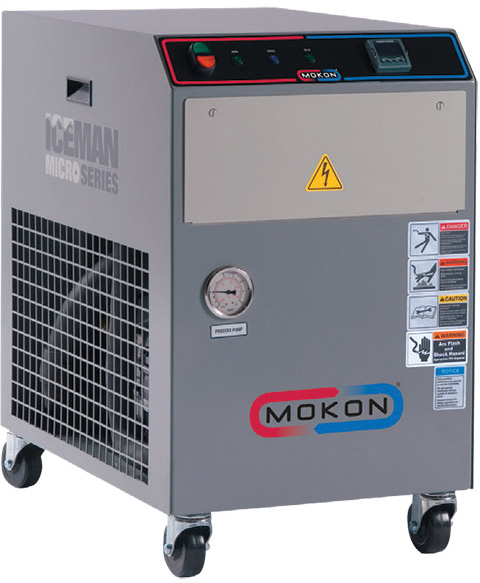

The Iceman Micro Series chiller is ideal for laboratory applications, laser cooling, micro-molding, and other industrial applications. Constructed in a sleek space-conscious cabinet, this system can also be customized to fit into space-limiting configurations.

The Micro Series chiller is available in air-cooled or water-cooled condensing both with cooling capacities of 1/4 or 1/3 Ton. The air-cooled design utilizes an air-cooled fin and tube condenser and is ideal for applications where cooling water supplies are inadequate or of poor quality. The water-cooled uses a tube-in-tube condenser, used primarily for installations where chilled water is required but existing cooling water supplies are not cold enough or ambient air temperatures are of a concern.

Request for Quote?
All of our products can be customized.

Start Here
Model
(Air-Cooled)
Cooling Capacity (Tons) Compressor Horsepower (Hp) Pump Horsepower (Hp) Nominal Flow Rate (GPM) Nominal Pressure (PSI) Process Connection (FNPT) Condenser Connections (FNPT) Tank Size (gallons) Electrical Service Dimensions (L x W x H) Approximate Shipping Weight (lbs.)
AF-1225 1/4 * 1/4 1/12 0.6
(2.3 Max)
up to 9 1/2" N/A 4 115V
Single
Phase
60 Hz
26" x 17" x 28" 150
AF-1233 1/3 * 1/3 1/12 0.8
(2.3 Max)
up to 9 1/2" N/A 4 115V
Single
Phase
60 Hz
26" x 17" x 28" 150

Model
(Water-Cooled)
Cooling Capacity (Tons) Compressor Horsepower (Hp) Pump Horsepower (Hp) Nominal Flow Rate (GPM) Nominal Pressure (PSI) Process Connection (FNPT) Condenser Connections (FNPT) Tank Size (gallons) Electrical Service Dimensions (L x W x H) Approximate Shipping Weight (lbs.)
WF-1225 1/4 ** 1/4 1/12 0.6
(2.3 Max)
up to 9 1/2" 3/8" 4 115V
Single
Phase
60 Hz
26" x 17" x 28" 150
WF-1233 1/3 ** 1/3 1/12 0.8
(2.3 Max)
up to 9 1/2" 3/8" 4 115V
Single
Phase
60 Hz
26" x 17" x 28" 150

* Based on 50°F chilled water at 2.4 gpm/Ton and 90°F ambient air.

** Based on 50°F chilled water at 3 gpm/Ton and 85°F condensing water.

Fluid temperature range is 20°F to 60°F (-7°C to 16°C).

Iceman Micro Series
  1. Non-proprietary microprocessor-based controller mounted in operator-friendly orientation
  2. NEMA rated electrical enclosure
  3. Air-cooled condenser (shown) or water-cooled condenser
  4. High and low refrigerant pressure switches
  5. Hermetically sealed compressor
  6. Nonferrous supply pump
  7. Insulated nonferrous plumbing and components
  8. Highly efficient brazed plate evaporator
  9. Heavy-duty insulated plastic tank
Additional Features:
  • NFPA 79 electrical safety standards
  • UL 508A labeled electrical sub-panel
  • Compact, table-top design
  • Durable, powder coated steel cabinet
  • Warranty
    • 1 year on system
    • 1 year on solid state controllers
    • 3 years on custom controllers
    • 5 years on microprocessor controllers and safeties

Please consult factory for more information.

  • Air duct flange (top)
  • Alarms - audible and visual
  • Auto fill
  • Blown fuse indication
  • Control options - remote setpoint and re-transmission, communication ports, and much more
  • CPR valve
  • Flow meters
  • Low/High refrigerant gauges
  • Other voltages, phases, frequencies
  • Overhead piping kit
  • Pilot light indication
  • Pump modifications to increase flow capacity or elimination of supply pump
  • Special paint
  • Strainers (process return)
  • Supply and return thermometers
  • Tank upgrades and modifications
  • Valved process bypass

Features of Standard and Optional Controls

A variety of controls are available from Mokon to enhance the high performance of our systems. From solid state to microprocessor based, with communication capabilities to PLC type controls, Mokon can provide the type of control package right for your process.


Eurotherm 3216 Series

The Eurotherm 1/16 DIN (3216) microprocessor controller is operator friendly and easy-to-use. Standard features include a microprocessor controller for the highest accuracy in temperature control, a dual LCD display that shows set point and actual fluid temperature, and scrolling text messages that deliver plain language messages to let users know exactly what is happening to the process. There are optional 1/8 or 1/4 DIN controllers available, with high/low deviation alarm, remote set point and retransmission and serial communication. A five-year warranty comes standard with the controller.


Eurotherm 3216 Spec Sheet
Eurotherm 3200 Series Manual

Custom Controls

Mokon’s ability to meet customers’ specific requirements is seen not only in custom system designs, but also in controls. Our engineers can custom design a control package that meets your specific processing needs, from brand name controls, to direct computer/host machine interfacing. All of which can be expected with the same quality and durability that our customers expect from our complete line of temperature control systems.
