Multi-Zone Process Heating Control Panel

Multi-Zone Process Heating Control Panel

3 Zone UL 508A Approved electrical control panel for process heating temperature control. The panel has a main door disconnect and each circuit has an electronic PID digital control with high limit safety and fused control circuit.

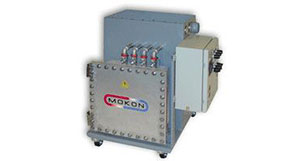

Pharmaceutical Application

Pharmaceutical Application

Water temperature control unit for a hazardous environment (Class I, Division I) including NEMA 7 explosion proof aluminum electrical enclosure, X type purge construction of mechanical compartment, and controller wired through intrinsically safe module.

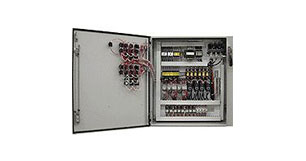

Conveyer Jacket Heater Control Panel

Conveyer Jacket Heater Control Panel

NEMA rated UL 508A Approved electrical control panel for process heating temperature control. Mokon panel has 460 Volt 3 Phase main power disconnect, electronic PID digital control, high temperature limit, and fused control circuit.

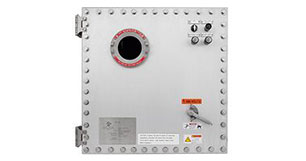

Hazardous Area Control Panel

Hazardous Area Control Panel

UL Approved control panel located in a hazardous location – Class I, Division II, Group C/D controlling process heaters. Panel has 460 Volt 3 Phase main circuit breaker, single zone, and viewing window for sub-panel mounted electronic control.

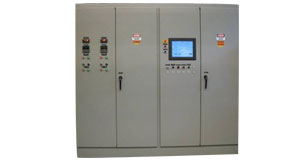

Engineered Control Panel

Engineered Control Panel

Custom four door multi-circuit 460 Volt 3 Phase free-standing panel with electronic indicating PID controllers and large screen display.

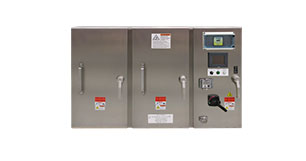

Outdoor Control Panel

Outdoor Control Panel

Outdoor 300 kW NEMA 4X stainless steel enclosure with 2 removable doors, 600 amp fused disconnect, 8 circuits with SCR control, PLC touch screen, and oxygen analyzer & sensor.
