Centralized Cooling SystemsCentralized Cooling Systems

Download Datasheet

Mokon's Central Chiller systems are available in 30 to 120 Ton cooling capacities, single or dual-circuit configurations to meet your processing requirements and scroll compressors. Our dependable, energy-efficient systems are your source for continuous centralized process cooling down to 20°F (-7°C).

Request for Quote?
All of our products can be customized.

Start Here

Single Circuit Central Chillers

Air-Cooled Water-Cooled Cooling Capacity (Tons) Compressor Horsepower (Hp) Process Connection (FNPT) Condenser Connection (FNPT) Water-Cooled Only
ASC30* WSC30 30 30 1 1/2" 1 1/4"
ASC40* WSC40 40 2 X 20 1 1/2" 1 1/2"
ASC50* WSC50 50 2 X 25 2" 1 1/2"
ASC60* WSC60 60 2 X 30 2" 1 1/2"
ASC80* WSC80 80 4 X 20 2 1/2" 2 1/2"
ASC100* WSC100 100 4 X 25 2 1/2" 2 1/2"
ASC120* WSC120 120 4 X 30 3" 3"

For Central Chiller systems larger than 120 Ton, please contact Mokon for more information.



Dual Circuit Central Chillers

Air-Cooled Water-Cooled Cooling Capacity (Tons) Compressor Horsepower (Hp) Process Connection (FNPT) Condenser Connection (FNPT) Water-Cooled Only
ADC30* WDC30 30 2 x 15 1 1/2" x 2 1 1/4" x 2
ADC50* WDC50 50 2 X 25 2" x 2 1 1/2" x 2
ADC60* WDC60 60 2 X 30 2" x 2 1 1/2" x 2
ADC80* WDC80 80 4 X 20 2 1/2" x 2 2 1/2" x 2
ADC100* WDC100 100 4 X 25 2 1/2" x 2 2 1/2" x 2
ADC120* WDC120 120 4 X 30 3" x 2 3" x 2

For Central Chiller systems larger than 120 Ton, please contact Mokon for more information.



*Outdoor Air-Cooled Chiller Condensers

      Without Low Ambient Kit With Low Ambient Kit
      Overall
Dimensions
L" x W" x H"
Approx. Weight (lbs.) Overall
Dimensions
L" x W" x H"
Approx. Weight (lbs.)
Tonnage1 Model Fan
Config.
Shipping Operating2 Shipping Operating2
2 CCR‑02 1x1 44 x 28 x44 190 200 44x 28 x 52 270 280
3 CCR‑03 1x1 44 x 28 x44 205 215 44 x 28 x 52 285 295
5 CMR‑06 1x1 54 x 38 x 44 310 325 54 x 38 x 55 410 425
7 CMR‑08 1x1 54 x 38 x 44 350 375 54x 38 x 55 465 485
10 CNR‑012 1x1 71 x 48 x 52 515 535 71x 48 x 58 680 700
15 CNR‑017 1x1 71 x 48 x 52 602 635 71x 48 x 58 780 810
20 CNR‑024 1x2 128 x 48 x 52 985 1023 128 x 48 x 58 1230 1275
25 CNR‑027 1x2 128 x 48 x 52 1005 1043 128 x 48 x 58 1255 1295
30 CNR‑035 1x2 128 x 48 x 52 1091 1148 128 x 48 x 58 1345 1405
40 CNR‑048 1x3 185 x 48 x 52 1460 1545 185x 48 x 58 1860 1945
50 CNR‑054 1x3 185 x 48 x 52 1570 1682 185x 48 x 58 2000 2115
60 CNR‑064 2x2 128 x 93 x 52 1795 1910 128 x 93 x 58 2245 2360
80 CNR‑095 2x3 185 x 93 x 52 2430 2600 185x 93 x 58 3140 3310
100 CNR‑115 2x3 185 x 93 x 52 2742 2967 185x 93 x 58 3515 3740
125 CNR‑139 2x4 242 x 93 x 52 3130 3355 242x 93 x 58 4010 4235



1 Condenser sizes and selections based on 95°F ambient temperature and up to 1,000' ASL
2 Operating weight includes condenser approximate winter charge.

Download PDF

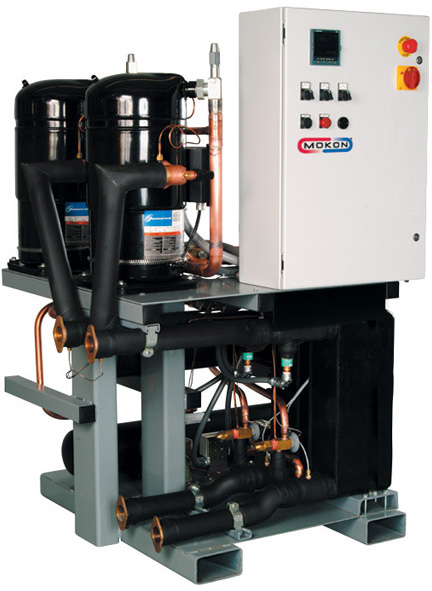

Central Chillers
  1. Scroll compressors
  2. Microprocessor-based or PLC controller mounted in operator-friendly orientation
  3. Emergency stop button
  4. Door disconnect switch
  5. Push buttons, indicating lights and alarms
  6. NEMA 12 rated electrical enclosure
  7. Pressure gauges
  8. Brazed plate evaporator
  9. Forklift access

System standard with NFPA 79 and UL 508A labeled electrical sub-panel



Accurate, Reliable and Green Friendly

  • Available in 30 Ton to 120 Ton cooling capacities
  • Supply process fluid control down to 20°F
  • Single or dual circuit configurations
  • Air-cooled or water-cooled condensing
  • Scroll compressors
  • Automatic compressor staging for capacity control
  • Electronic hot gas bypass for partial load conditions
  • Microprocessor controls
  • Green friendly refrigerants

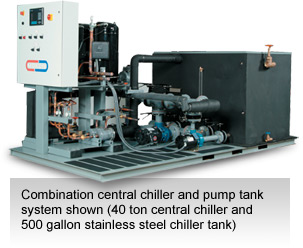

  • Combination central chiller and pump tank systems available

Maximum Safety and Low Maintenance

  • NEMA 12 rated electrical enclosure
  • Low and high refrigerant pressure safety devices
  • Main power disconnect
  • General fault and individual system alarms including freezestat, compressor fault and no flow condition
  • Refrigeration shut-off valve isolates refrigerant for regular service
  • Emergency stop allows quick emergency shutdown
  • Audible alarm for fast notification of problems with reset
  • NFPA 79 and UL 508A labeled electrical sub-panel

Warranty


  • 1 year on system
Dual Circuit Water Cooled Flow Schematic

Please consult factory for more information.

  • Audible alarm
  • C3 Cold Climate Coolers: Cost-effective solution to process cooling in cold weather areas. Closed circuit cooling system requires no make-up water or chemical treatment.
  • CPR valve
  • Evaporator manifold
  • Evaporator manifold with isolation valves
  • Evaporator strainer
  • Low temperature ambient kit
  • Water-cooled condenser manifold
  • Water-cooled condenser manifold with isolation valves
  • Water-cooled condenser strainers
  • Visual alarm

Features of Standard and Optional Controls

A variety of controls are available from Mokon to enhance the high performance of our systems. From solid state to microprocessor based, with communication capabilities to PLC type controls, Mokon can provide the type of control package right for your process.

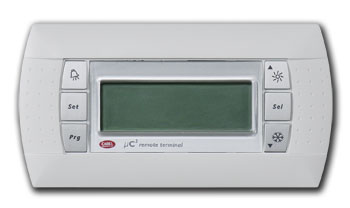

Carel Micro

The Carel Micro is the standard controller for single circuit central chillers. Features include a microprocessor-based electronic controller, LCD readout of set point and actual fluid temperature, and compressor lead lag. Additional features include built-in delay and safety functions, capacity control of compressor(s), and hour meter readout of run time on compressor(s). The Micro controller is compact yet extremely accurate and powerful.


Carel Micro Spec Sheet

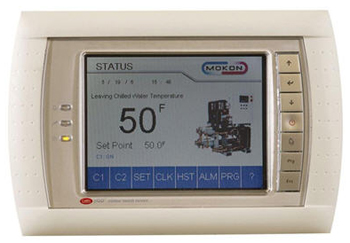

Carel pCO (with pGD display)

The Carel pCO is the standard controller for dual circuit central chillers. Features include an advanced programmable microprocessor-based controller with software designed for chiller applications and a programmable color LCD touch screen display with industry standard graphic symbols that indicate modes of operation and system performance. Additional features include compressor lead lag, built-in delay and safety functions, multiple digital or analog signal input and output capabilities, and real-time clock with running hour meter that logs compressor run time. Available options are BACnet or LonWorkscommunication capabilities for interface with BAS (Building Automation Systems) and program uploads with the use of a programming key versus a PC. The pCO controller ensures our customers the most accurate control technology with the most current communication capabilities and control features on the market.


Custom Controls

Mokon's ability to meet customers' specific requirements is seen not only in custom system designs, but also in controls. Our engineers can custom design a control package that meets your specific processing needs, from brand name controls, to direct computer/host machine interfacing. All of which can be expected with the same quality and durability that our customers expect from our complete line of temperature control systems.
