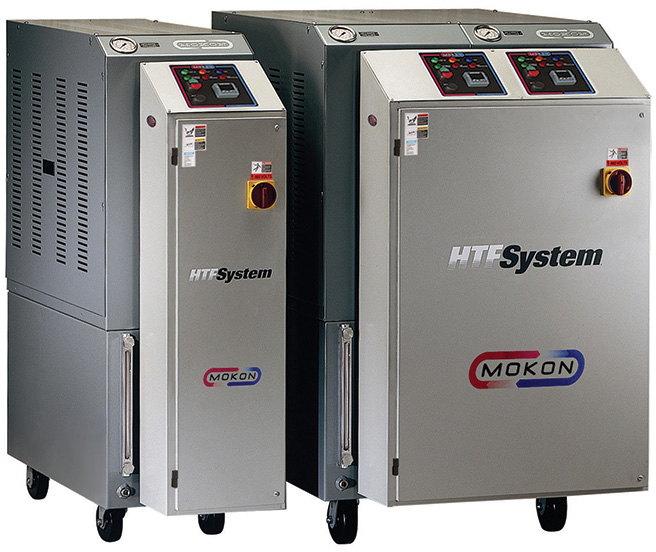

htfs.pngHEAT TRANSFER FLUID SYSTEMS

» For process heating requirements up to 700°F (371°C)
» Available up to 600 kW and from 5 to 120 gpm
» Heating and/or cooling with single, dual or triple zone configurations, and stationary designs
  Read More

Full Range

Mokon's heat transfer fluid based Full Range temperature control system offers a combination heating and cooling system all in one package. A Mokon heat transfer fluid system, combined with an Iceman chiller, integrates the benefits and features of both products into one compact, self-supporting unit.

The Full Range system is ideal for jacketed vessels, mixers and reactors; multi-zone processes; installations where rapid cooling is required; and laboratory, sanitary and chemical process applications.

Our heat transfer fluid based Full Range system features the folllowing:

• Heating capacities up to 48 kW
• Pumping capacities up to 30 GPM
• Various temperatures from a minimum of 50°F (10°C) to a maximum of 650°F (343°C)
• Rapid cool down capabilities
• NEMA rated electrical enclosure
• UL 508A labeled electrical sub-panel
• Meets NFPA 79 electrical safety standards

Product Features

HTF Full Range.jpg



A•  Positive displacement pump/motor
B•  Insulated heater bundle
C•  NEMA rated electrical enclosure with main disconnect switch
D•  Microprocessor-based controller
E•  Glycerin-filled pressure gauges
F•  Air-cooled condenser (shown) or water-cooled condenser
G•  Heavy-duty insulated plastic tank
H•  Heavy-duty braking casters
I•  Scroll compressor
J•  Cooling heat exchanger
K•  Continuous flow cool oil reservoir
L•  Recirculating pump

Additional Features:
• NFPA 79 electrical safety standards
• UL 508A labeled electrical sub-panel
• Combination heating and cooling in a self-supporting system





HTF Full Range Flow Schematic




Options

* Please consult factory for more information.
Additional Cooling Capacity
Alarms - audible and visual
Auto Air Purge
Blown Fuse Indication
Control Options - remote setpoint and re-transmission, communication ports, and much more
Heat Exchanger Flow Control System
Heater Selector Switch (Automatic)
Heater Selector Switch (Manual)
High-Temperature Stainless Steel Braided Hose
Low Fluid Level Shut-Off
Other Voltages, Phases, Frequencies
Power Cord
Process Fluid Purge via Switch
Special Paint
Strainers
Thermometers

Controls

Features of Standard and Optional Controls
A variety of controls are available from Mokon to enhance the high performance of our systems. From solid state to microprocessor based, with communication capabilities to PLC type controls, Mokon can provide the type of control package right for your process.


Eurotherm 3200 Series
The Eurotherm 1/8 DIN microprocessor controller is operator friendly and easy-to-use. Standard features include a microprocessor PID controller for the highest accuracy in temperature control, a dual LCD display that shows set point and actual fluid temperature, and scrolling text messages that deliver plain language messages to let users know exactly what is happening to the process. There are optional controllers available, with high/low deviation alarm, remote set point and retransmission and serial communication. A five-year warranty comes standard with the controller.

Click on the link below for more information on the Eurotherm 3200 Series controllers:
3200 Series Manual
Custom Controls
Mokon’s ability to meet customers’ specific requirements is seen not only in custom system designs, but also in controls. Our engineers can custom design a control package that meets your specific processing needs, from brand name controls, to direct computer/host machine interfacing. All of which can be expected with the same quality and durability that our customers expect from our complete line of temperature control systems.

Quote/Literature Request
